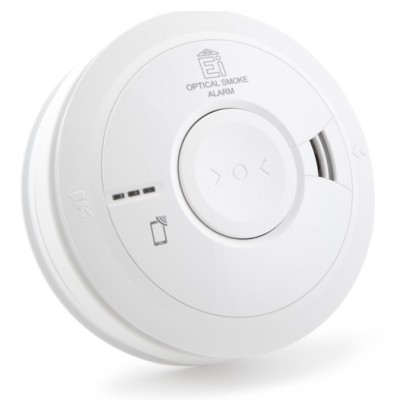

Aico Ei3016 230v 3000 Series Optical Smoke Alarm

Aico Ei3016 230v 3000 Series Optical Smoke Alarm

The Ei3016 Optical Smoke Alarm contains a high-performance optical smoke sensor, which is best for detecting slow, smoldering fires. In addition, the smoke chamber design, integrated insect screen and unique automatic dust compensation reduce the risk of false alarms. The Ei3016 runs on 230V AC mains power. In the event of mains failure, the 10 Year+ built in tamper-proof rechargeable lithium cells will provide back-up supply and continuous operation.

The Ei3016 contains AudioLINK technology, which allows you to extract real time data from the alarm directly to a smartphone or tablet via the AudioLINK App. The Ei3016 self-checks its sensor, battery and internal circuitry every 48 seconds. Any fault condition found will be indicated by a combination of yellow LED flashes and/or audible beeps. The memory feature allows an alarm that has previously activated to be easily identified (through the red flashing LED).

The alarm is fitted with a large Test/ Silence button to facilitate frequent testing of the alarm and system. The silence function allows the alarm/ system to be silenced in the case of a false/ nuisance alarms and low battery/ fault beeps. SmartLINK compatible - plug in an Ei3000MRF module for wireless interconnection, data extraction and real-time notifications of alarm activations and events via the SmartLINK Gateway and Portal.

Key Features

• Contains a high-performance optical sensor
• Mains powered with 10-year rechargeable Lithium cell back-up
• Compatible with interconnection and monitoring technology
• AudioLINK TM Data extraction technology
• Dust compensation - unique self-monitoring mechanism
• Easi-Fit base
• 10 Year life
• Sensor Type: Optical
• Supply Voltage: 230V AC, 50Hz
• Power Consumption: 0.25W (standby)
• Battery Back-up: Rechargeable lithium cells
• Sound Level: 85dB(A) at 3m
• Button Test: Checks sensor, electronics and sounder
• Silence Function: Silences alarm for 10 minutes
• Silence Function: Silences fault beeps for 12 hours
• AudioLINK: Enabled
• SmartLINK: Compatible via the Ei3000MRF Module
• Indicator LED’S: Green – power. Red – alarm/ silence mode/ memory. Yellow – fault event
• Memory: Records last alarm event
• Fixing: easi-fit base (supplied)
• Operating Temperature: -10°C to 40°C
• Humidity Range: 15% to 95% relative humidity
• Plastic Material: UL 94 V0 flame retardant
