Aico Ei158R 230v Relay Module with 5A Relay

This product is now obsolete, please see our available Domestic Fire Detectors.

Aico Ei158R 230v Relay Module with 5A Relay

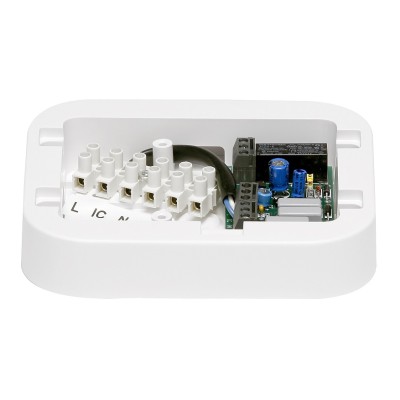

The Ei158R is a relay module that runs of 230V AC mains power. The module has a set of Volt Free contacts (Normally Open and Normally Closed) as standard but can be configured to give a 230v output or a 24v output using an external 24V supply. Any combination of 150 series alarms can be used (up to 12 including the relay).

The module is designed to fit underneath the smoke or heat alarm. The module has additional Trunking knock outs for ease and wiring. The module can give a continuous or pulse output. The pulse output will switch back the relay contacts to their original state after 5 seconds operation.

Key Features

• For use with 150 series alarms
• Volt free contacts as supplied for multiple use
• Can be configured to switch a 230v or 24v device
• Trunking knock-outs for easy and neat wiring
• Additional connectors for ease of wiring
• Continuous or pulse operation
• Fits discreetly behind any smoke / heat alarm
• 5 Year Guarantee
• Surface mount Pattress
• Built in 5A Relay with Pulse or Continuous modes of operation
• Facilitates bulky wiring and conduits
