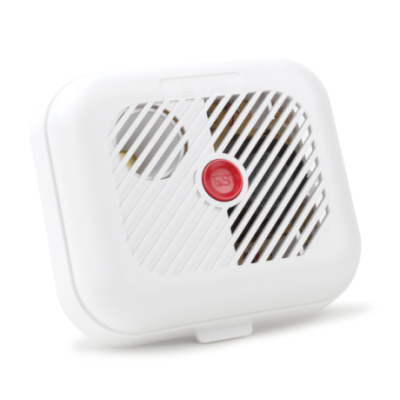

Aico Ionisation Smoke Alarm – Ei100BNX

Please note: This product is now obsolete, the replacement is the Aico Ei650 Optical Smoke Alarm 10Yr Lithium Battery Powered.

Aico Ionisation Smoke Alarm – Ei100BNX

The Ei100BNX Ionisation Smoke Alarm operates on the principle that electrical current flowing between electrodes in the ionisation chamber is altered when smoke particles enter.

The ionisation alarm is sensitive to all domestic fire types but is especially sensitive to fast flaming fires.

The Ei100BNX Ionisation Smoke Alarm is supplied with screw fixings and is simple to install. The battery removed indicator is a very important safety feature of the alarm. If the battery has been removed a pop up warning flag appears and it is not possible to replace the alarm cover until a new battery has been fitted.

The alarm is fitted with a ‘Test’ button to facilitate frequent testing of the alarm.

The sounder will automatically stop sounding when smoke particles are no longer present in the chamber. This is useful in the case of nuisance alarms from cooking fumes etc.

When the battery is nearing its end of life, the alarm will emit a short beep every 40 seconds to indicate that the battery needs replacing.

When the battery is first connected, the alarm may sound for 2 to 3 seconds, this is normal and means that the battery is connected correctly.

Key Features

• Ionisation sensor chamber
• Quick response to fast flaming fires
• Battery included
• Standalone – no wiring required
• Battery removal indicator
• Low battery indication
• Built-in sounder – 85dB(A) at 3 metres
• ‘Test’ button
• Kitemarked to BS EN14604:2005
• 5 year guarantee

Technical Specification

• Sensor type: ionisation
• Battery: 9V Replaceable
• Sound Level: 85 dB (A) at 3 meters
• Temperature: Operating – 0°C to 40°C. Storage – 0 to 35°C (in a dry area)
• Humidity Range: 15% to 95% relative humidity non condensing
• Button Test: Simulates the effect of smoke and checks chamber, electronics and horn
• Plastic Material: UL94 HB
• Dimensions: Product – 140mm x 120mm x 45mm. Package – 145mm x 130mm x 50mm
• Weight: 215g (including packaging)
• Guarantee: 5 year guarantee
