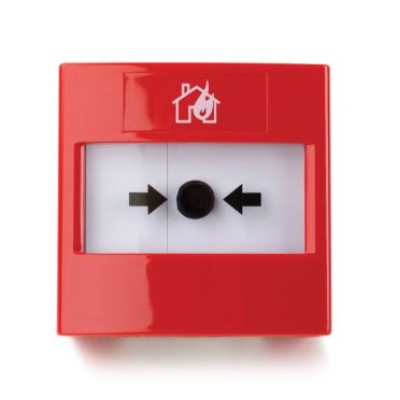

Aico MCP401RC 230v Manual Call Point with Rechargeable Back-up

Aico MCP401RC 230v Manual Call Point with Rechargeable Back-up

The MCP401RC Manual Call Point is an emergency device that when activated triggers all the alarms on the connected system. This Call Point is mains powered and can be hard wired interconnected anywhere into the alarm system.

The front plate is made from a non-breaking plastic that means if the call point is used you can simply reset the plate, rather than having to replace it.

When the Manual Call Point is activated, it will trigger all alarms causing them to sound.

When the unit is reset (using the key provided) it will automatically cancel the interconnect signal, and the alarms will stop sounding.

Key Features

• A unique Manual Call Point that mimics the feel of breaking glass whilst offering the benefits of a re-settable operating element
• 230V AC mains powered with tamper proof rechargeable Lithium cells designed to last 10 years (the life of the unit) whilst providing up to 2 months operation in the event of mains failure
• Suitable for use with 2110e, 160e and 140RC Series smoke, heat and CO alarms (up to a maximum of 20 including the MCP401RC)
• Easily installed via a 3-core connection – Live, Neutral and interconnect (the same as the smoke, heat and CO alarms), using 0.75mm² or 1.00mm² cable
• When the front plate is pressed, a visible warning flag will appear to indicate it has been activated.
• Simple key to reset the unit (no broken glass)
• Supplied with 35mm deep surface mounting box, rest key and all screws and fixings
• Dimensions: 85 x 85 x 60mm
• Weight inclusive of packaging: 230g
• 5 year guarantee
