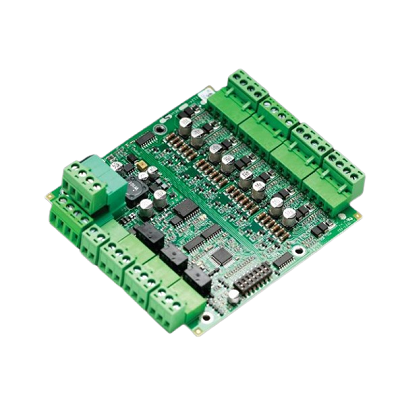

Advanced MxPro 5 MXP-536F 8-Way Programmable Zone Monitor Card (Fitted)

Advanced MxPro 5 MXP-536F 8-Way Programmable Zone Monitor Card (Fitted)

The Programmable 8-Zone Monitor Card is an optional peripheral unit that provides eight individually programmable zone monitor circuits compliant with BSEN54- 18: 1998 Clause 7.8.

Up to 16 cards can be connected to a multi-loop panel providing a maximum of up to 128 additional zone monitor circuits.

Each zone is fully programmable using the powerful dynamic cause-and-effect rules.

The unit is available as either a printed circuit card only.

Applications / Limitations

EN54-18 compliant zone monitor circuit.

Key Features

• 8 zone circuits - each zone is monitored for open and short circuit
• Each zone is individually programmable with the available dynamic cause-and-effect rules
• Up to 16 cards can be connected giving a total of 128 additional zone monitors
• 1 relay output for reset
• 128 zone monitor circuits per panel
• Easily configured via PC-NET-003
• 3 year warranty as standard
