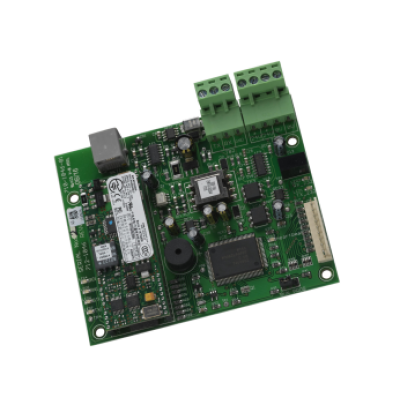

Advanced MXP-028F Modem Card (24V) Fitted

Please Note: From 1st January 2023, this product will no longer be available. After careful analysis of the features and benefits across the MxPro 4 and MxPro 5 ranges, Advanced Electronics have decided to remove a number of MxPro 4 options where they are also available on the MxPro 5.

Advanced MXP-028F Modem Card (24V) Fitted

The Advanced MXP-028 Modem Card is a peripheral interface for use with the Mx4000/5000 range of control panels. The unit permits remote PC connection for interactive control panel interrogation via the software package PC-Net-004. The unit can be supplied in PCB format for internal panel mounting, or in an enclosure for remote mounting.

This unit has the following diagnostics:

Heartbeat LED Indicator

During initial power up, LED 3 will flash at a rate of 2Hz. After approximately 5 seconds it will revert to 1Hz indicating normal operation.

Modem Status LED's

DCDIND – Telephone connection established

RXIND – Receipt of data by modem

DTRIND – Always illuminated

TXIND – Data transmission by modem

RS232 Activity LED's

RX – Receipt of data from fire panel

TX - Transmission of data to fire panel

Applications / Limitations

The modem will allow interactive interrogation of the connected fire product including transfer of the event log using Pc-Net-004 software.

Key Features

• Remote Dial-Up access to the Mx4000 series.
• Can be internally mounted or remotely fitted.
• Uses Pc-Net-004 for PC to site connection
• 3 Year Warranty as standard.
