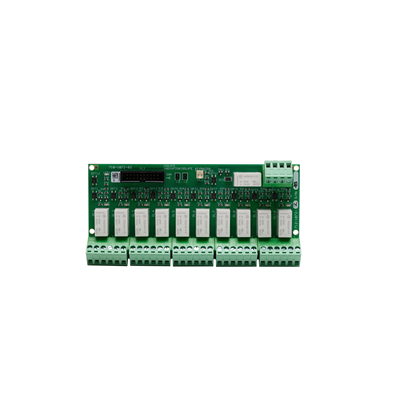

Advanced MxPro 10 Way Mimic Relay Card - Mxp-052

Please note: this product is obsolete with no direct replacement. Please contact us for information.

Advanced MxPro 10 Way Mimic Relay Card - Mxp-052

The Mxp-052 is a peripheral relay card providing ten 30V DC, 1A programmable relay outputs. The Mxp-052 connects directly to any of the DIL connectors of either the Network Mimic Mxp-020-100 LED Output Card or the General I/O controller Mxp-045 LED Output Card units via the supplied ribbon cable.

Each output follows the cause and effect programming of the mimic unit output. This can be either a simple zone output or can be an individually programmed output group rule utilising the full range of features of the Mx-4000/5000 systems Dynamix zoning facilities.

Key Features

• Ten change-over contact outputs rated at 30V DC, 1A.
• Up to 200 individual relay outputs fully programmable per mimic (excluding LEDs)
• Ten individually programmable relay outputs per unit
• DIN rail or screw fixing options
• Separate isolate input (disables all outputs)
• Separate isolate indication output
• Fast instant response
