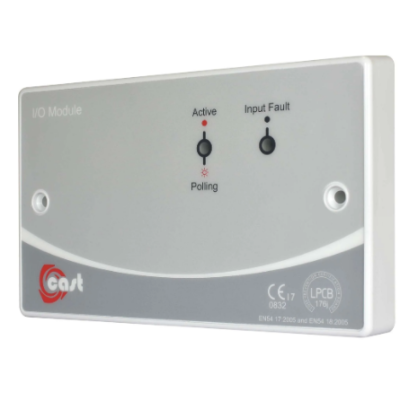

C-Tec CA730 CA Input Output Module

C-Tec CA730 CA Input Output Module

The C-Tec CA730 is an addressable input output interface module using the C-Tec CAST analogue addressable protocol.

‘CAST’ is the world’s most-advanced ‘distributed intelligence’ fire alarm system protocol. Conceived, designed and realised by C-TEC as part of a five-year, multi-million pound project, it involved the creation of a powerful proprietary communication protocol (C-TEC Addressable System Technology, CAST) and multiple control panels & field devices.

Key Features

• LPCB certified to EN54-17 & 18 and Kiwa Telefication certified to EN54-13
• Incorporates the functions of a switch monitor, zone monitor and output unit
• Up to 20 conventional detectors & 10 MCPs
• Any normally open switch with an EOL resistor fitted
• A simple normally open or closed switch (non-fault monitored)
• Onboard short-circuit loop isolator
• 5.5mA typical alarm current (1.3mA typical quiescent current) @ 22-40V DC
• Indicators for Loop polling, input faults and relay status
• Can switch 1A@30V DC (or 0.3A@125V AC)
• Includes volt free changeover contacts that can be used to trigger rollershutter doors, gas shut-off valves, smoke vents, etc
• Mountable on a C-TEC NCP-26 surface box or a standard UK 25mm double gang back box (not supplied)
