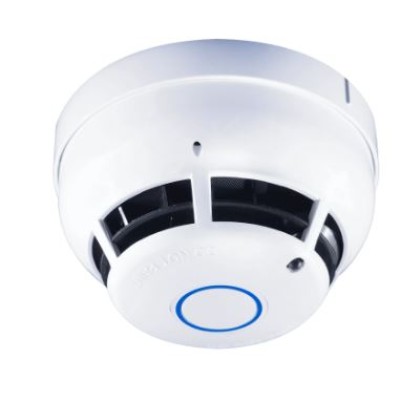

Protec Optical Smoke and Heat Multi-Sensor

Protec 6000PLUS/OPHT Optical Smoke and Heat Multi-Sensor

The 6000PLUS/OPHT is an interactive addressable high performance optical smoke and heat multi-sensor. The dual technology multi-criteria fire detector uses detection of smoke by scattering of infra-red within the optical chamber coupled with thermal enhancement of the optical sensitivity, as well as providing temperature detection equivalent to grade A2. The smoke and heat channels can be controlled independently for day / night operation with intelligent data being evaluated by the Protec Algo-Tec 6000 interactive programmable algorithms.

These sensors reach across the range of fire products from large visible particles from smoldering fires to open flaming fires producing very hot smaller particles and are therefore suitable for use in all smoke detection applications. The environmental conditioning algorithms can be selected to filter unwanted alarms and enhance performance.

Key Features

• Dual technology sensor
• Combined smoke and heat sensors
• Ideal for multi-purposes
• Independent channel controls
• Day / night operation
• Protec Algo-Tec 6000PLUS Protocol
• Devices display address number
• Fast addressing
• Reduce false alarms
