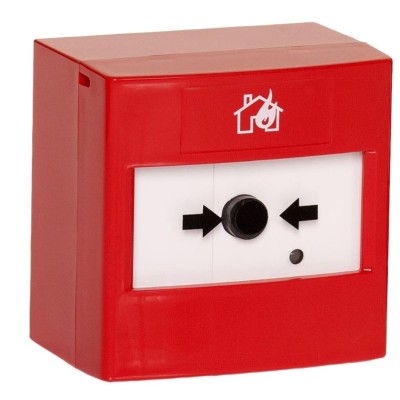

Intelligent Resettable Call Point HFI-CP-01

Please note: This product is now obsolete, the direct replacement is the Hyfire HFI-CP-03/C Intelligent Resettable Call Point.

Intelligent Resettable Call Point HFI-CP-01

The resettable manual call point is designed in accordance with EN54-11. The wireless version features a bi-colour red/green LED that provides comprehensive information on the device status, signal strength and battery status.

The HFI-CP-01 Intelligent Manual Call Point is compatible with all fire control panels utilising the Hyfire fully digital communication protocol. Reliable and fast operation is achieved even when employing the impressive 240 device loop capacity. The operating “glass” element on the front face of the Call Point and the alarm flag indicator can be easily reset using a special key. Therefore, after activation, the call point can be quickly restored to its normal quiescent state making it ready for immediate re-use. The Call Point design also provides bi-directional short circuit isolators, plus a visual LED indicator to confirm communication polling and alarm activation.

Features

• Designed to meet the requirements of EN54-11
• Provides high reliability and error detection
• Short circuit isolators in each device
• Large capacity, up to 240 devices per loop
• Addressable via VPU100 programmer
• Auto addressing capability (Control panel feature)
• OEM password protection
• High power availability from loop (>98%),
• Digital checking of double address
• Line quality information
• Bicolour (red green) LED driven by the control panel
