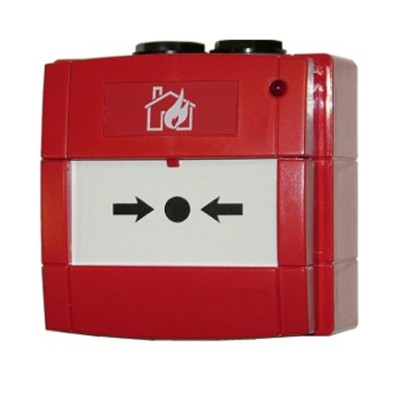

FireClass FC421CP Addressable Weatherproof Manual Call Point

FireClass FC421CP Addressable Weatherproof Manual Call Point

All Fireclass callpoints are designed to enable an alarm signal to be given by a plastic resettable element, which means that the call point can be easily reset after it has been activated. Any change in the status of the switch is immediately communicated to the Fireclass Control and Indicating Equipment (CIE). All call points have an integral short-circuit isolator for monitoring the addressable loop wiring. The integral LED indicator is normally off. When the frangible element is broken, an alarm is registered and the LED will illuminate red. If a section of the loop wiring adjacent to the call point is shorted, the built-in short-circuit isolator trips, isolating the shorted section and the LED is illuminated yellow. The status remains until the short is removed. If required, an optional transparent hinged cover may be installed to guard against accidental operation.

Key Features

• Integral LED indicator for easy identification of operation
• Surface or Flush Mounting
• Test key facility, speeds maintenance visits
• Optional transparent hinged cover
• Hazardous area models available
• IP67 Waterproof models for external applications
