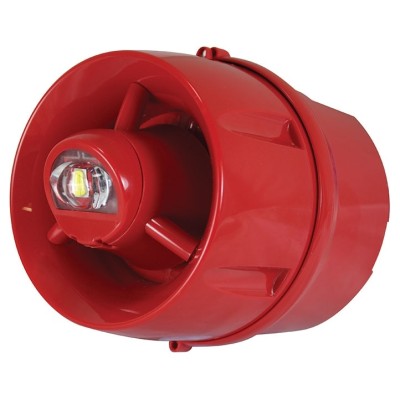

C-Tec BF447A/CX/DR Addressable Wall Voice Sounder VAD with Deep Base

C-Tec BF447A/CX/DR Addressable Wall Voice Sounder VAD with Deep Base

The BF447A/CX/DR is a Hi-Output wall VAD with voice sounder designed with superb sound intelligibility for use with the C-Tec addressable range of control panels.

Key Features

• Includes three selectable voice message pairs
• Provides 'W-2.4-8.2' light distribution when wall mounted (min 0.4 lux over a 2.4m x 8.2m cuboid area using the same lens and electronics as our EN54-23, 3 & 17 certified wall sounder VAD)
• Onboard short-circuit loop isolator
• 550µA quiescent current
• 19.5mA alarm current @24V DC (VAD lit, voice sounder on max)
• Group addressing facility allows multiple devices to be operated simultaneously
• 7 selectable volume levels and up to 15 selectable tone pairs
• IP33C (Type B) rated
