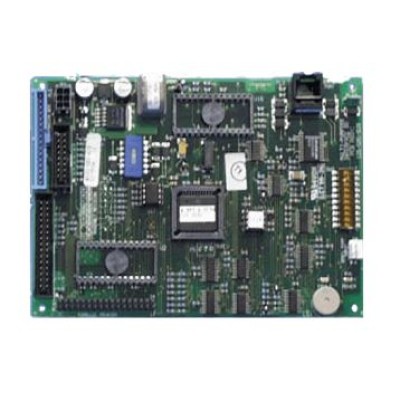

Fireclass 557.202.012FC MPM800 Multi-Purpose I/F Module

The MPM800 is used to provide various expansion capabilities via the remote bus (RBUS). The MPM800 is provided as a standalone module but is also incorporated into the circuitry of the OCM800 operator control module to drive the LCD display, LEDs, key switch and keys on the OCM800 and the operator display module.

The OCM800 and MPM800 have an XBUS which can be used to drive up to 80 I/O. The MPM800 also has a printer interface for connecting to a serial or parallel printer.

An additional printer driver kit is required to allow the MPM800 to drive a printer - a serial isolation module should be used to eliminate earth fault indications caused by some mains connected printers.

Up to 15 x MPM modules can be connected to each panel of which 8 can be in the form of OCM800 (including the main OCM800 user interface). One OCM800 can also be in the form of an emulated user interface on a remote PC connected via the network or dial up modem.

The following I/O and LED annunciator modules can be saved from an MPM800:

• Up to 5 x IOB 800 (8 in/8 out expansion board)
• Up to 5 x XIOM 800 (16 way universal I/O board)
• One Mimic Panel (80-way LED mimic driver PCB)
• One 80-way ANN 880 LED mimic**
• One 40-way ANN 840 LED mimic using red & yellow LEDs**
• Two 20-way COM 820 LED status/command modules**

The MPM800 is mounted by plugging directly onto the back of those items marked**

Key Features

• Features an XBUS which can be used to drive up to 80 I/O
• Printer interface for connecting to a serial or parallel printer
• Direct Interface to Zonal Displays and other Modules
• Interfaces to FIM Board
