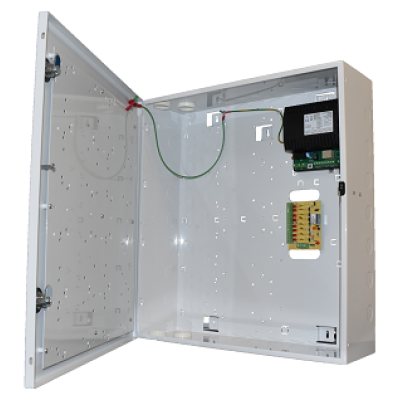

Elmdene ACCESS-UL-PSU2 UL294 12V 4A PSU With 4 Way Fused Output Module In D Box

Elmdene ACCESS-UL-PSU2 UL294 12V 4A PSU With 4 Way Fused Output Module In D Box

Elmdene’s UL294-certified power solutions have been designed for compatibility with the most common access control door controllers. They offer installation flexibility and are a time-saving solution for system designers.

These enclosures are engineered to accommodate multiple door controllers, providing power integration within access control systems. This enables robust power management to ensure seamless operation and optimised performance of your access control systems.

By choosing Elmdene’s compliant power solutions, you can rest assured that your access control systems will operate smoothly and efficiently. These power solutions are the perfect fit for system designers who value flexibility and reliability in their power supply solutions.

This high efficiency cost effective UL294-listed power supply/charger is designed for use in Access Control systems enclosed in two spacious cabinet choices each fitted with locks and tamper switch.

Regulated 13.8Vdc output with battery stand-by supplying rated current to 4 independently PTC Fused Outputs (resettable fuses) individually configured for continuous or switched output current via a fire relay switch with flexible trigger options, capable of operating with any external control signal. PSU Universal mains input. Two dry (volt free) contacts are provided to signal loss of mains and battery / output faults.

Key Features

• Single and Multi-door solutions
• 12V standby battery charging
• Multi-fused outputs are provided
• Mains fail reporting
• Battery Monitoring and Deep Discharge Protection (ACCESS-UL-PSU1 and ACCESS-UL-PSU2)
• Independent ancillary relay for applications such as a ‘Fire’ door release relay
• Integration with door controllers, including: Mercury Security, ProWatch (Honeywell)
• “D” Enclosure (505 x 407 x 80)
