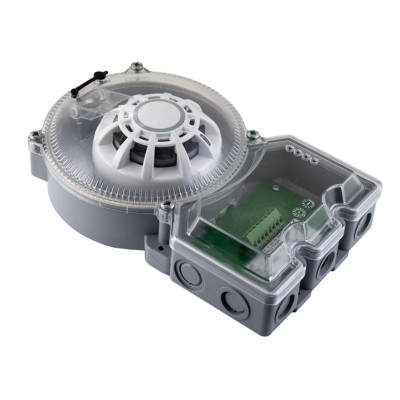

C-Tec CPDUCT/OPT CAST PRO Duct Smoke Detection Kit c/w CAST PRO Optical Detector and Base

C-Tec CPDUCT/OPT CAST PRO Duct Smoke Detection Kit c/w CAST PRO Optical Detector and Base

CPDUCT/OPT from the C-Tec range of products is a CAST PRO duct smoke detection kit which comes with the CAST PRO optical detector and base.

Key Features:

• Looks for the presence of smoke in air moving through ductwork
• Kit includes a CAST-PRO CP416 optical smoke detector and a CAST CA408 base supplied in a durable plastic housing c/w sockets for the required length of Venturi tubing (tubing available separately - see More Information tab below)
• Compatible with C-TEC's ZFP and XFP CAST protocol addressable fire panels
• Can be located horizontally or vertically on the top, bottom or side of a duct ideally well away from devices that could interfere with its operation (heating, cooling or humidity devices)
• Includes an onboard short circuit loop isolator
• <1mA alarm curren
• 570uA typical quiescent current @ 40V DC
• Approval to EN 54-27:2015 pending (certificates attached apply to the kit's CP416 detector only)
