C-Tec CP402B CAST PRO Heat Detector Black

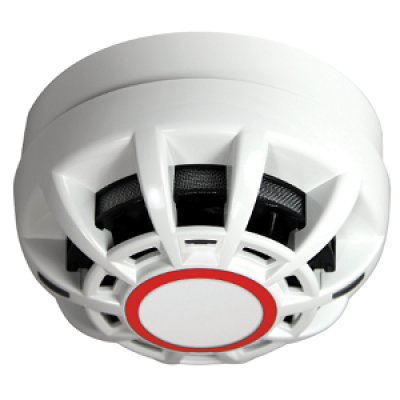

Please note: this image is for illustrative purposes only.

C-Tec CP402B CAST PRO Heat Detector Black

A programmable CAST-PRO heat detector certified to EN54-5 & 17. This detector is compatible with C-TEC’s ZFP touchscreen-controlled CAST protocol addressable fire panel.

Key Features:

• Comes in black
• Onboard short circuit loop isolator
• Includes two 8mm x 2mm ultra-bright red LED indicating strips
• Three operation modes – can be programmed to operate as an A1R, A2 or B heat detector
• <1mA alarm current
• 570A typical quiescent current @ 40V DC
• Compatible with C-TEC’s CA408 CAST base c/w integrated locking mechanism & ID tag
