ACT GOLD Plus 6V/12V Intelligent Battery Tester

Please note: The GOLD-Plus is now obsolete, and has been replaced by the ACT 6/12V Intelligent Battery Tester ACT/612.

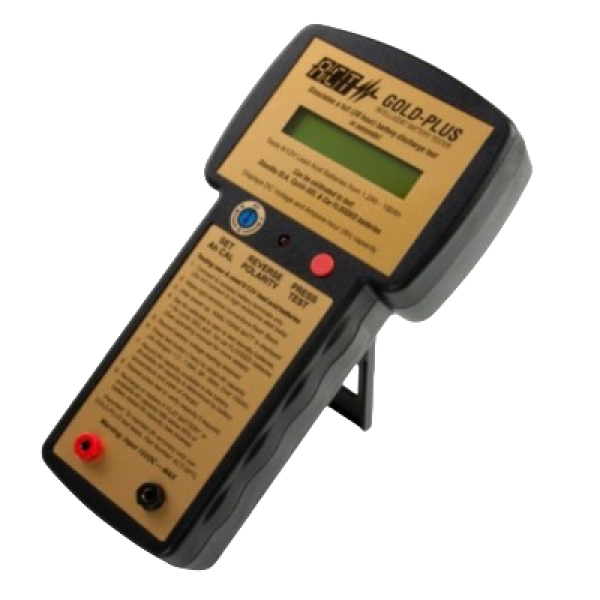

ACT GOLD-Plus 6V/12V Intelligent Battery Tester

GOLD-PLUS is an Intelligent Battery Capacity Tester designed to test 6V lead acid batteries from 1.2Ah to 12Ah and 12V from 1.2Ah to 100Ah. Its pulse load technology simulates a 20-hour battery discharge test in just 20 seconds, displaying the Ampre-hour (Ah) capacity available in the battery. A unique Ah calibration control provides adjustment to enable Standby SLA, Cyclic GEL and Car FLOODED batteries to be tested accurately.

The battery type (SLA, GEL, FLA) in normally stated on the battery. GOLD-PLUS can be used to test batteries repeatedly or continuously as required.

Key Features

• Displays the Ah capacity available in 6/12Volt lead acid batteries in seconds
• Tests 6Volt SLA batteries from 1.2Ah to 12Ah and 12Volt from 1.2Ah to 100Ah
• Tests SLA batteries straight from the box, partially or fully charged
• Can be calibrated to test Standby SLA, Cyclic GEL and Car FLOODED batteries
• Table indicates when batteries should be recharged or replaced
• Quick, accurate and easy to use
• Designed to test 6/12volt lead acid type batteries used in Alarm Systems, UPS, Motor Vehicles, Golf Trolly's, Mobility Scooters, Leisure Batteries etc.

Included with GOLD-Plus
Test leads, carry case, battery labels, user manual, certificate of conformity.

How It Works
When connected to the battery, It accuratly displays the voltage and Ah capacity available based on the battery's age, temperature and state of charge. Results can be compared with the table printed on the back of the meter which shows when batteries need to be recharged or replaced. Labels are provided to record results to be attached to the battery. Batteries can be tested straight from the box and when partially or fully charged.
