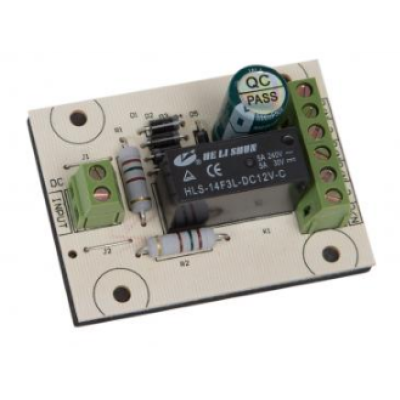

RGL Electronics RL02 Multipurpose Relay 6-40VDC or 6-30VAC Input at 47mA

RGL Electronics RL02 Multipurpose Relay 6-40VDC or 6-30VAC Input at 47mA

Multi-purpose relay designed for use with multiple system types that require a simple switching or timer circuits. It can operate a low current Input at 12V DC and switch to a higher voltage at 5 Amps.

The relay is great for high voltage current switching, for example floodlights, mains sirens and access control locks, but can be integrated with all types of systems, inluding intruder, access, door entry, fire and CCTV systems.

Key Features:

• Accepts DC or AC input current
• Multiple applications
• Voltage: 6-40V DC or 6-30V AC
• Coil: 90 Ohms
• Current: 47mA
• Contact rating: 5A @ 250V AC or 30V DC
• 2 x Com - N/O - N/C
