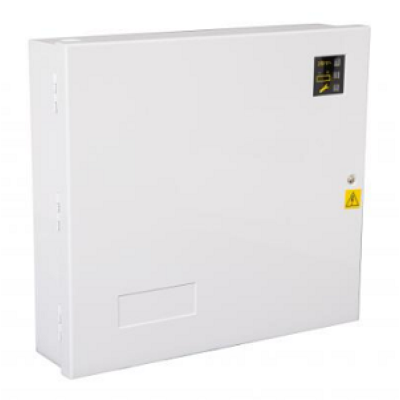

RGL Electronics 2402SM-2MP 27.6V DC Power Supply In A Large Housing

RGL Electronics 2402SM-2MP 27.6V DC Power Supply In A Large Housing

Manufactured by RGL, the 2402SM-2MP is a 27.6V DC power supply in a large housing with a multi indicator.

It Includes Mains, Battery & PSU monitoring via voltage free outputs and is designed to house up to 2 x 9 Ah battery. Additional battery charging of 300mA - includes Deep Discharge Protection.

Ideal for fire systems and 24 Volt systems that require a battery backup i.e. Access Control, Entry Systems and General use.

Key Features:

• Battery & mains monitoring
• Mild steel construction
• White powder coated finish
• Hinged style box
• Wiring product
• More efficient and environmentally friendly
• Top. bottom and rear cable entry
• Front tamper

Technical Specification:

• Full current to load
• 2 Amp PSU
• 27.6VDC regulated output
• Additional battery charging
• Deep discharge protection
• Current limiting
• Short circuit protection
• Mains transient protection
• Compliant to EMC EN61000-6-1 & 3
• Can house 2 batteries up to 12V 9Ah
