C-Tec PDA103L Small Room Hearing Loop Kit (50m2)

C-Tec PDA103L Small Room Hearing Loop Kit (50m2)

Hearing loop systems allow hearing impaired people to hear more clearly. Most hearing aids have a ‘T’ or ‘MT’ switch which allows them to pick up the electromagnetic field generated by a hearing loop system. The hearing aid converts this signal into a sound suited to its user’s specific hearing requirements.

Any person with a hearing aid positioned within or near the loop can hear the loop signal by switching their hearing aid to the correct position, allowing them to participate more effectively in general conversation, ordering goods or services, listening to public performances, etc.

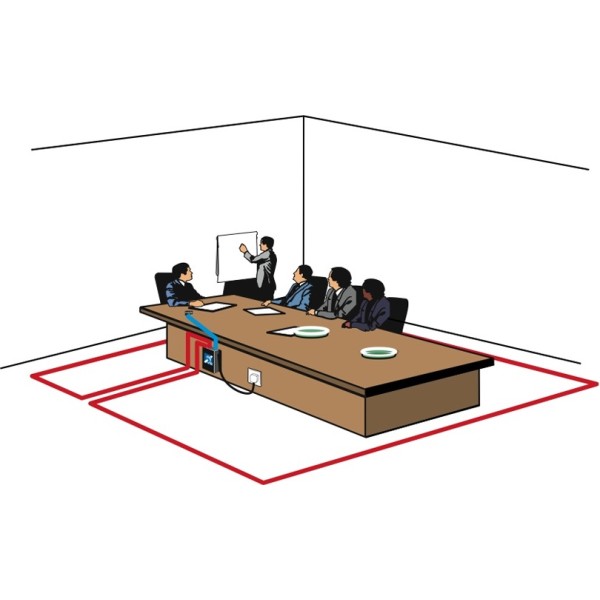

The PDA103L is everything you need to create a high-quality hearing loop system for a room up to 50m2 (7m x 7m). Ideal for small meeting rooms, council chambers, doctors' surgeries, etc.

Key Features

• PDA103 amplifier includes a 3.5mm microphone input (for connecting the tie/desk mic. supplied), a line level input and an 'outreach' socket.
• Metal compensation control helps improve intelligibility in rooms with high metal content
• Adjustable mic, line level and 'outreach' controls.
• Drive (level) control allows the amplifier's output stage to be set-up to suit the exact characteristics of the application.
• State-of-the-art audio processor features an automatic gain control which compensates for poor microphone techniques and helps suppress loud noises, hisses and clicks.
• Limit, Peak, Loop Fault and Power On indicators,
• Designed to be wall-mounted using the keyholes provided.
• Exceeds the requirements of BS7594 and EN60118-4 when correctly installed.

Technical Specification:

• Hearing loop type – wall mountable. Plug top mains lead supplied.
• Coverage – 50m2 approx.
• Amplifier dimensions – W135mm x H13mm x D35mm (including controls). Weight: 380g (amplifier only).
• Kit box dimensions: W340mm x H250mm x D70mm.
• Inputs – 1 x 3.5mm mic. Socket; 1 x 3.5mm line level socket, 1 x Outreach socket.
• Indicators – Limit; Peak; Loop Fault; Power On.
• Controls – Mic; Line; Outreach; Metal Compensation; Loop Drive (Level).
• Kit Contains – PDA103 amplifier; PL1/PSU1 plugtop power supply; AMT microphone; 40m loop cable; ‘Hearing Loop Fitted’ sticker.
